Jerrell's Touring Bike

Heart 0 Comment 0 Link
New Energy riser design.
Heart 0 Comment 0 Link

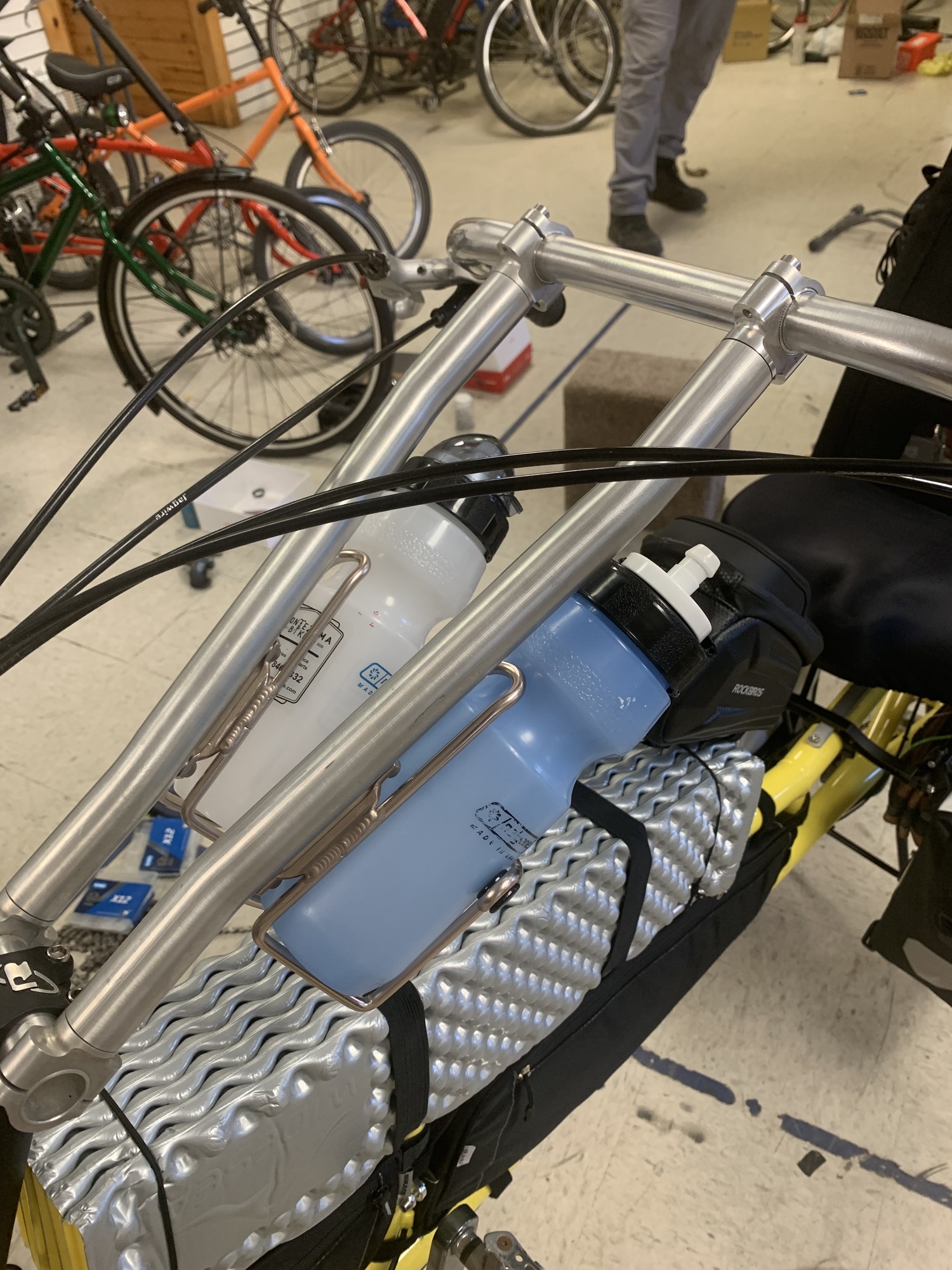

Machined 1.5" clamps around frame supporting 3/8" tubing that are held by t-cycle clamps. This mount is holding a sleeping pad
Heart 0 Comment 0 Link
Solid rod (3/8"), craftily bent to hold the phone/electronics case. It ties into the sleeping pad mount using the t-cycle clamps.
Heart 0 Comment 0 Link
Machined mount to accommodate the tail light and the Garmin radar. Here again, 3/8" tubing was used to support the rear mount to the flute tubes using those nifty t-cycle clamps. The clamps were also used to install water bottle cages. The tent is strapped to the loops on the tail bag.
Heart 0 Comment 0 Link
With the supports for the rear mount, it was an excellent way to mount a tire pump. Pictured is the tool case in the water bottle cage.
Heart 0 Comment 0 Link
A close picture of the rear mount and lights. The fenders are an added piece of art as well as function. They were given to Jerrell from Jonathan Garcia. The maker of them is Woody Fenders. I must say they are beautiful and do not rattle around at all!! The fender stays are installed to the sprint brace tabs. A clever idea!
Heart 0 Comment 0 Link
